375kg/h Steam Heating Conveyor Mesh Belt Dryer For Fruit
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | MPCD-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Conveyor Mesh Belt Dryer For Fruit Vegetable Seaweed Pepper Herb Chilli Coconut | Model Type: | MPCD-25 |
|---|---|---|---|
| Application: | Foodstuff Industry | Loading Area: | 25M2 |
| Steam Pressure: | 0.4-0.7Mpa | Steam Consumption: | 180-375kg/h |
| Drying Period: | 60-600min | Evaporation Capacity: | 125-250kg.H2O/h |
| Power: | 5.5kw | Weigth: | 8T |
| Overall Dimensions: | 9875x2408x3385mm | Heating Source: | Steam,Natural Gas, LPG, Electricity |
| Highlight: | Fruit Conveyor Mesh Belt Dryer,Steam Heating Conveyor Mesh Belt Dryer,375kg/h Mesh Belt Dryer |
||
Product Description
Conveyor Mesh Belt Dryer For Fruit Vegetable Seaweed Pepper Herb Chilli Coconut
The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly.
MPCD Mesh Belt Dryer Application
The Industrial continuous mesh belt dryer machine is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
MPCD Mesh Belt Dryer Work Principle
1. The dryer consists of feeder, drying bed, heat exchanger, damp exhaust fan, etc.
2. When operation, air will be entered into dryer and heated through heat exchanger. Being adopted scientific and reasonable cycle method, the hot air will pass through raw materials to be dried on the bed and carry out iniform heat exchange. Under the action of cycle fan, the hot air steam inside each unit of the dryer will carry out hot air cycle. Final air with low temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
MPCD Mesh Belt Dryer Technical Parameters
| Type | MPCD-20 | MPCD-25 | MPCD-32 | MPCD-36 | MPCD-48 | MPCD-60 | MPCD-80 |
| Loading area(m2) | 20 | 25 | 32 | 36 | 48 | 60 | 80 |
| Steam pressure(Mpa) | 0.4-0.7 | ||||||
| Steam consumption(kg/h) | 150-300 | 180-375 | 240-480 | 270-540 | 360-720 | 450-900 | 600-1200 |
| Drying period(Min) | 20-200 | 60-600 | 100-1000(Stepless) | ||||
| Evaporating Capacity(kg.H2O/h) | 100-200 | 125-250 | 160-320 | 180-360 | 300-480 | 300-600 | 400-800 |
| Power(kw) | 5.5 | 5.5 | 5.5 | 5.5 | 14.2 | 15.2 | 15.2 |
| Weight(t) | 8 | 8 | 8.5 | 10 | 11 | 13 | 15 |
| Overall Dimension LxWxH(mm) | 8875*2408*3385 | 9875*2408*3385 | 11475*2408*3385 | 11475*2408*3385 | 14675*2408*3385 | 14675*2408*3385 | 15675*2408*3385 |
MPCD Mesh Belt Dryer Feature
◆◆ Different heating and circulation method is available for choice.
◆◆ Length , width and layer quantity of belt is designed based on production requirement.
◆◆ The machine pre-dehydration process could remove massive moisture on leaf surface, thus reduced the drying strength, and reduced the energy consumption.
◆◆ Special hot air drying system, increase material penetrability and drying rate.
◆◆ The adjustment of belt speed and the different section temperature control, it guaranteed the drying time and material quality and color.
◆◆ Strong magnetism iron removal device is available for choice, it could remove metal impurities effectively.

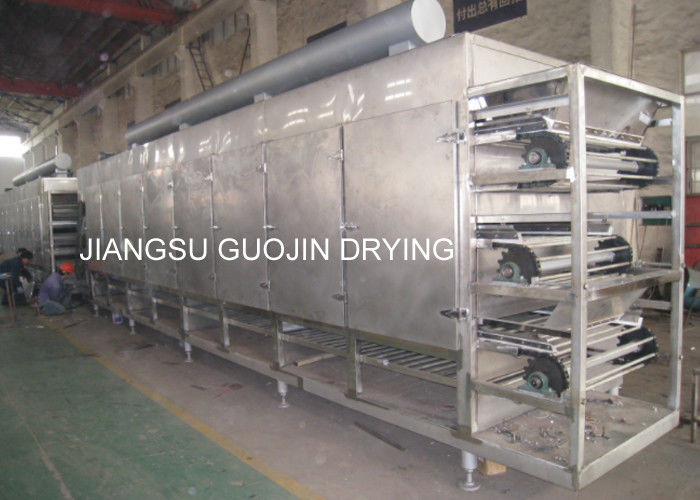

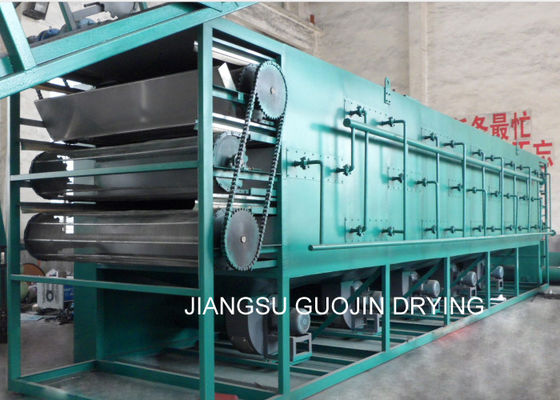

MPCD Mesh Belt Dryer Show
