GMP Standard Foodstuff Conveyor Mesh Belt Dryer For Chili
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | MPCD-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Foodstuff Conveyor Mesh Belt Dryer For Chili | Model Type: | MPCD-20 |
|---|---|---|---|
| Application: | Foodstuff Industry | Loading Area: | 20 M2 |
| Steam Pressure: | 0.4-0.7 Mpa | Steam Consumption: | 150-300 Kg/h |
| Drying Period: | 20-200 Min | Evaporation Capacity: | 100-200 Kg.H2O/h |
| Power: | 5.5 Kw | Weigth: | 8t |
| Overall Dimensions: | 8875x2408x3350mm | Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity |
| Highlight: | Foodstuff Conveyor Mesh Belt Dryer,Chili Conveyor Mesh Belt Dryer,GMP belt dryer machine |
||
Product Description
Foodstuff Conveyor Mesh Belt Dryer For Chili
1. Mesh belt dryer / belt dryer machine
2, GMP standard
3, Easy operation and control
MPCD Mesh Belt Dryer Descriptions
The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly.
MPCD Mesh Belt Dryer Application
The Industrial continuous mesh belt dryer machine is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
MPCD Mesh Belt Dryer Work Principle
1. The dryer consists of feeder, drying bed, heat exchanger, damp exhaust fan, etc.
2. When operation, air will be entered into dryer and heated through heat exchanger. Being adopted scientific and reasonable cycle method, the hot air will pass through raw materials to be dried on the bed and carry out iniform heat exchange. Under the action of cycle fan, the hot air steam inside each unit of the dryer will carry out hot air cycle. Final air with low temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
MPCD Mesh Belt Dryer Technical Parameters
| Type | MPCD-20 | MPCD-25 | MPCD-32 | MPCD-36 | MPCD-48 | MPCD-60 | MPCD-80 |
| Loading area(m2) | 20 | 25 | 32 | 36 | 48 | 60 | 80 |
| Steam pressure(Mpa) | 0.4-0.7 | ||||||
| Steam consumption(kg/h) | 150-300 | 180-375 | 240-480 | 270-540 | 360-720 | 450-900 | 600-1200 |
| Drying period(Min) | 20-200 | 60-600 | 100-1000(Stepless) | ||||
| Evaporating Capacity(kg.H2O/h) | 100-200 | 125-250 | 160-320 | 180-360 | 300-480 | 300-600 | 400-800 |
| Power(kw) | 5.5 | 5.5 | 5.5 | 5.5 | 14.2 | 15.2 | 15.2 |
| Weight(t) | 8 | 8 | 8.5 | 10 | 11 | 13 | 15 |
| Overall Dimension LxWxH(mm) | 8875*2408*3385 | 9875*2408*3385 | 11475*2408*3385 | 11475*2408*3385 | 14675*2408*3385 | 14675*2408*3385 | 15675*2408*3385 |
MPCD Mesh Belt Dryer Feature
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

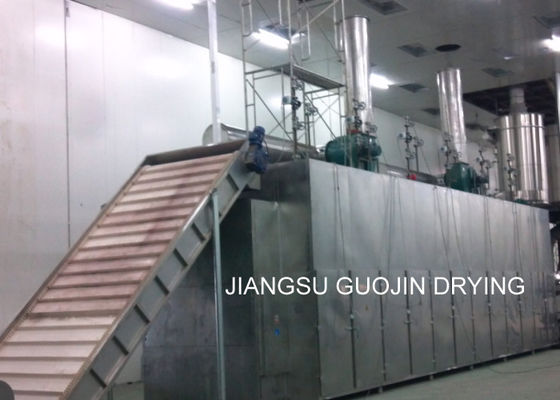

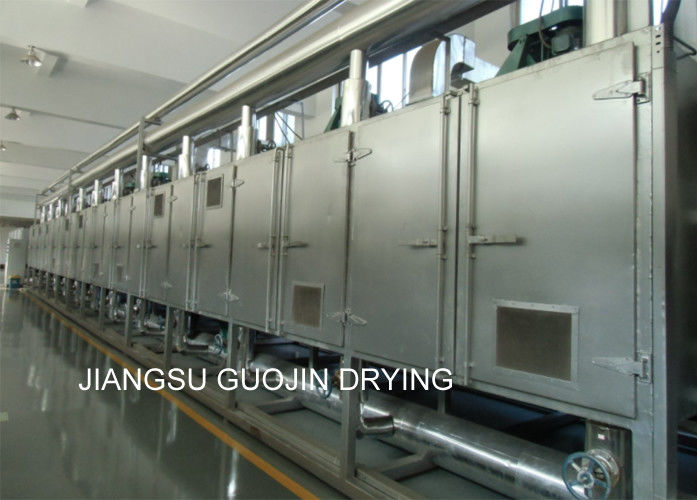

MPCD Mesh Belt Dryer Show
