Spin Flash Vaporization Dryer For Indigo Blue Pigment
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | SFD-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Spin Flash Vaporization Dryer For Indigo Blue Pigment | Model Type: | SFD-10 |
|---|---|---|---|
| Application: | Chemical Processing | Barrel Diameter: | 1000 Mm |
| Main Machine Dimensions: | 1100x5000 Mm | Main Machine Power: | 40-62 KW |
| Treatment Wind Capacity: | 5000-12500 M3/h | Water Evaporation: | 100 - 1000 |
| Material: | Stainless Steel 304 & Carbon Steel | Heating Source: | Electricity,Steam,Gas, Coal |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
Spin Flash Vaporization Dryer For Indigo Blue Pigment
Hot air in tangential direction enters into the bottom of the rotary flash dryer, and forms strong rotational wind field under the action of stirrer. The materials get into the drying equipment from screw feeder, under the strong effect of the high-speed rotating impeller, the materials are dispersed after being rubbed and sheared. Bulk materials are quickly crushed and fully contacted with the hot air in order to complete drying. Dehydrated dry materials rise with the hot air, the grading ring will retain the large particles and the small ones will be excluded from the rotating flash drying machine through the ring center. The cyclone separator and dust remover will recover these materials. The wet or bulk materials will be threw to the container wall by centrifugal force, and fall into the bottom of the flash dryer to be crushed and dried again.
SFD Indigo Blue Pigment Dryer Features
1. SFD rotating flash drying machine is equipped with a special cooling device at the bottom, thus avoiding material deterioration due to high temperature.
2. Wind distribution device can reduce the resistance to drying equipment and provide air volume for the dryer.
3. This rotary flash dryer uses particular pressurized sealing device and bearing cooling device to effectively prolong the service life of the drive part.
4. Material fineness and final moisture content can be adjustable.
5. Short staying time of material can prevent the material from sticking to the wall and the thermosensitive material from deteriorating.
SFD Indigo Blue Pigment Dryer Application
1. Inorganic materials: boric acid, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, metal hydroxide, heavy metallic salt and compound cryolite.
2. Organic materials: atrazine, lauric acid, benzoic acid, sodium oxalate, cellulose acetate
3. Ceramics: kaolin, silica and calay
4. Dyes: anthraquinone, black iron oxide, butyrate, titanium hydroxide, zinc sulfide, azo dyes
5. Food: soy protein, gelatinized starch, vinasse, triticin, wheat starch
6. Pharmaceuticals: analgin (The first domestic application of flash dryer)
SFD Indigo Blue Pigment Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
SFD Indigo Blue Pigment Dryer Flowchart

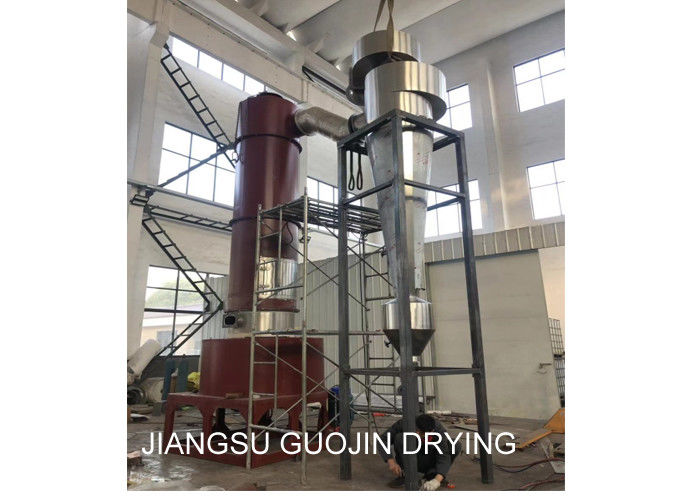

SFD Indigo Blue Pigment Dryer Show
