Industrial Stainless Steel Titanium Rotary Spin Flash Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | SFD-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Industrial Stainless Steel Titanium Rotary Spin Flash Dryer | Model Type: | SFD-6 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing | Barrel Diameter: | 600mm |
| Main Machine Dimensions: | 700x4200mm | Main Machine Power: | 20-29KW |
| Treatment Wind Capacity: | 2500-5000M3/h | Water Evaporation: | 40-200 |
| Material: | Stainless Steel Or Carbon Steel | Heating Source: | Electricity, Steam,Gas |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
Industrial Stainless Steel Titanium Rotary Spin Flash Dryer
SFD Titanium Rotary Dryer Features
1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon
2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area
3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.
SFD Titanium Rotary Dryer Application
SFD Titanium Rotary Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
SFD Titanium Rotary Dryer Flowchart

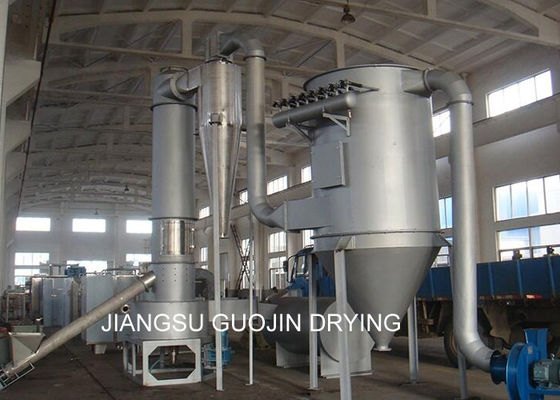

SFD Titanium Rotary Dryer Show
