Rotary Spin Flash Dryer Used For Lead Chrome Yellow
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | SFD-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Rotary Spin Flash Dryer Used For Lead Chrome Yellow | Model Type: | SFD-5 |
|---|---|---|---|
| Application: | Industry Processing | Barrel Diameter: | 500 Mm |
| Main Machine Dimensions: | 600x4000 Mm | Main Machine Power: | 12-24 KW |
| Treatment Wind Capacity: | 1500-4000 M3/h | Water Evaporation: | 30 - 100 |
| Material: | Stainless Steel Or Carbon Steel | Heating Source: | Electricity,Steam,Gas |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
Rotary Spin Flash Dryer Used For Lead Chrome Yellow
SFD Lead Chrome Yellow Dryer Description
SFD Lead Chrome Yellow Dryer Features
1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon
2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area
3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.
SFD Lead Chrome Yellow Dryer Application
SFD Lead Chrome Yellow Dryer Technical Parameters
| Type | Barrel diameter(mm) | Main machine dimensions(mm) | Main machine power(kw) | Treatment wind capacity(m3/h) | Water evaporatoion(kgg/h) |
| SFD-2 | 200 | 250x2800 | 5-9 | 300-800 | 10-20 |
| SFD-3 | 300 | 4400x3300 | 8-15 | 600-1500 | 20-50 |
| SFD-4 | 400 | 500x3500 | 10-17.5 | 1250-2500 | 25-70 |
| SFD-5 | 500 | 600x4000 | 12-24 | 1500-4000 | 30-100 |
| SFD-6 | 600 | 700x4200 | 20-29-2500 | 5000 | 40-200 |
| SFD-8 | 800 | 900xx4600 | 24-35 | 3000-8000 | 60-600 |
| SFD-10 | 1000 | 1100x5000 | 40-62 | 5000-12500 | 100-1000 |
| SFD-12 | 1200 | 1300x5200 | 50-89 | 10000-20000 | 150-1300 |
| SFD-14 | 1400 | 1500x5400 | 60-105 | 14000-27000 | 200-1600 |
| SFD-16 | 1600 | 1700x6000 | 70-135 | 18700-36000 | 250-2000 |
SFD Lead Chrome Yellow Dryer Flowchart

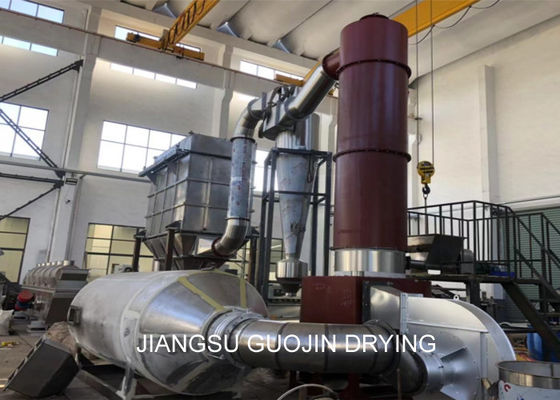

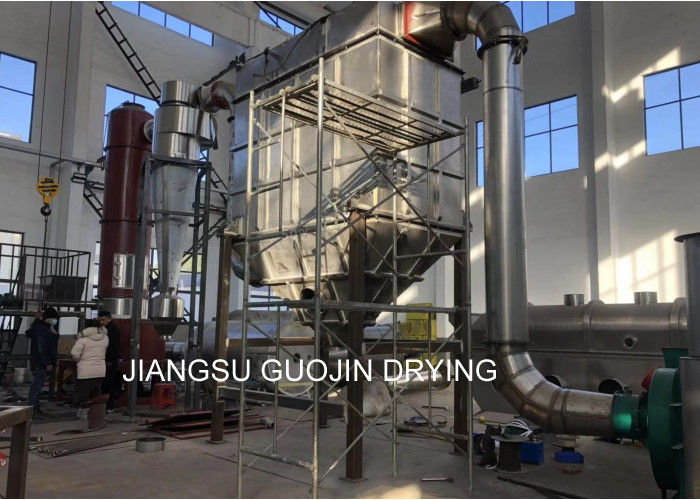

SFD Lead Chrome Yellow Dryer Show
