24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | CT-C-O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer | Model Type: | CT-C-O |
|---|---|---|---|
| Application: | Industry Processing | Tray: | 24pcs |
| Trolley: | 1 | Evaporatioin Area: | 7.1M2 |
| Efficient Volume: | 1.3M3 | Radiator Area: | 10M3 |
| Steam Consumption: | 10kg/h | Electric Heating Power: | 6KW |
| Fan Volume: | 3450M3/h | Drying Capacity: | 60kg/batch |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
CT-C hot air circulating oven is equipped with axial flow fan and automatic constant temperature control system. The computer control system is also available. The thermal efficiency of our hot air circulation tray dryer is up to 70%. The biggest characteristic of this drying equipment is that part of the hot air circulates inside the oven, and the whole circulating process is closed, thus enhancing heat transfer and energy saving.
Product Working Principle of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Product Feature of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
More Details of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 °C, Max.140 °C.
3. Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa (2-8 bar).
5. For CT-C-I, electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 °C or less than 60 °C, please indicate when order.
9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
10. Baking plate dimensions: 460*640*45mm
Technical Parameters of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
| Model | Field standard model | drying capacity(kg/batch) | Radiator area(m3) | Steam consumption(kg/h) | Electric heating power(kw) | Fan Power(kw) | Overall dimensions(WxDxHmm) | Equipped drying cart(set) | Drying pallet tobe equipped(pc) | Total weight(kg) |
| CT-C-O | RXH-7-C | 60 | 10 | 10 | 6 | 0.45 | 1380x1200x2000 | 1 | 24 | 820 |
| CT-C-I | RXH-14-C | 120 | 20 | 18 | 15 | 0.45 | 2260x1200x2000 | 2 | 48 | 1580 |
| CT-C-II | RXH-27-C | 240 | 40 | 36 | 30 | 0.45x2 | 2260x2200x2000 | 4 | 96 | 1800 |
| CT-C-IIA | RXH-27-C | 240 | 40 | 36 | 30 | 0.45x2 | 4280x1200x2270 | 4 | 96 | 1880 |
| CT-C-III | RXH-41-C | 360 | 80 | 60 | 45 | 0.45x3 | 2260x3200x2000 | 6 | 144 | 2100 |
| CT-C-IIIA | RXH-41-C | 360 | 80 | 60 | 45 | 0.45x3 | 3240x2200x2000 | 6 | 144 | 2210 |
| CT-C-IV | RXH-54-C | 480 | 120 | 80 | 60 | 0.45x4 | 4280x2200x2270 | 8 | 192 | 2800 |
| CT-I | RXH-14-B | 120 | 23 | 20 | 15 | 1.1 | 2480x1200x2375 | 2 | 48 | 1220 |
| CT-II | RXH-27-B | 240 | 48 | 40 | 30 | 1.5 | 2480x2200x2438 | 4 | 96 | 1530 |
| CT-III | RXH-41-B | 360 | 72 | 60 | 45 | 2.2 | 3430x2200x2620 | 6 | 144 | 2110 |
| CT-IV | RXH-54-B | 480 | 96 | 80 | 60 | 3 | 4460x2200x2620 | 8 | 192 | 2300 |

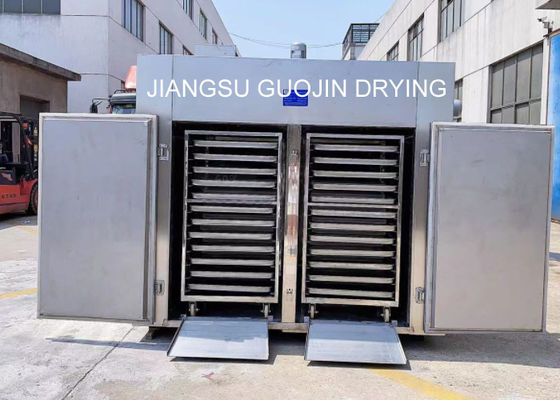

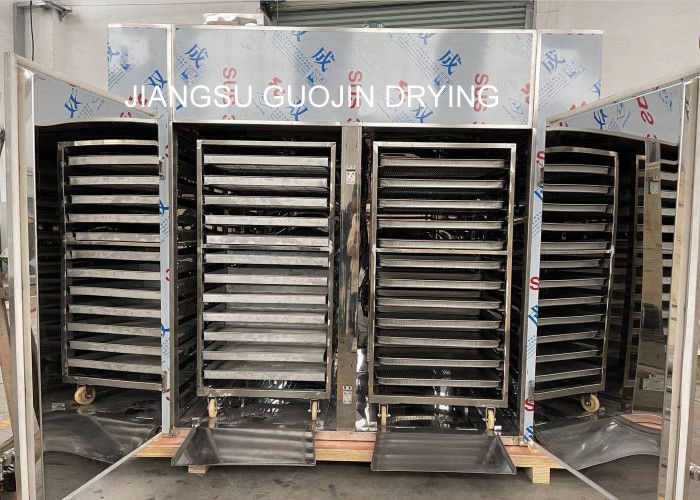

Product Show of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
