Universal Impact Mill 5300r/min With Wind Wheel Type Rotating Knife
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | UIM-20B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | UIM Series Universal Impact Mill | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | UIM-20B | Production Capacity: | 60-150kg/h |
| Spindle Rotation Speed: | 5300r/min | Feeding Granularity: | 10mm |
| Crushing Granularity: | 20-150mesh | Crushing Motor: | 4kw |
| Dust Removal Motor: | 0.55kw | Dimension Of Single Machine: | 550x500x1200mm |
| Dimension With Dust Removal: | 1100x600x1650mm | ||
| Highlight: | Impact Mill 5300r/min,Impact Mill 150kg/h,5300r/min Grinding Equipment |
||
Product Description
UIM Series Universal Impact Mill
This machine is widely used for weak current substances and high temperature resistant substances such as chemical industry, medicine(traditional Chinese medicine), food, spices, resin powder, coating powder, etc.
Product Features
This machine adopts a wind wheel type high-speed rotating knife. The fixed knife performs impact, shearing and grinding. Not only is the grinding effect good, but also a strong airflow is generated in the cavity at the grinding time. The heat of the grinding chamber and the finished product flow out of the screen together. The grinding fineness can be determined by changing the screen.
Technical Parameters
| Model | 20B | 30B | 40B | 50B | 60B | 80B | |
| Production capacity(kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 500-2000 | |
| Spindle rotation speed(r/min) | 5300 | 4200 | 3800 | 3200 | 2800 | 2200 | |
| Feeding granularity(mm) | 10 | 10 | 10 | 15 | 15 | 15 | |
| Crushing granularity(目) | 20-150 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | |
| Crushing motor(kw) | 4 | 5.5 | 7.5 | 18 | 22 | 30 | |
| Dust removal motor(kw) | 0.55 | 0.55 | 1.1 | 1.5 | 2.2 | 3 | |
| Dimensions(LxWxH) | With dust removal | 1100x600x1650 | 1300x700x1850 | 1350x700x1920 | 1400x800x2700 | 1600x900x2300 | 1800x1200x2500 |
| Single machine | 550x500x1200 | 600x550x1320 | 650x600x1550 | 700x650x1680 | 850x800x1820 | 950x900x1960 | |
Product Working Principle

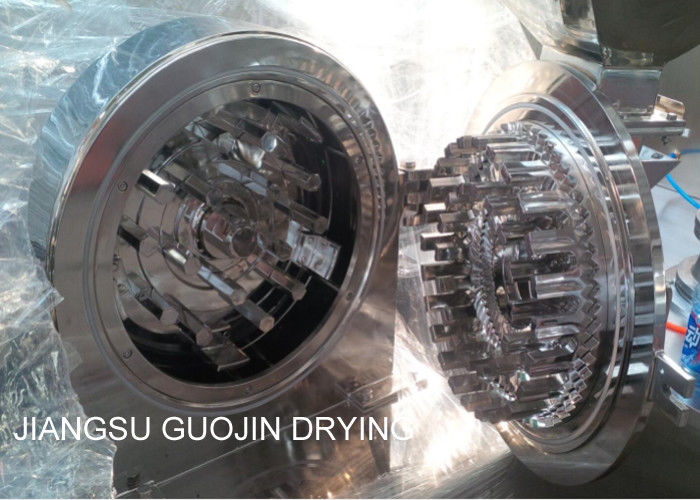

This unit uses the relative movement between the movable toothed discs to crush the materials though the impact, friction and impact between the toothed discs. The crused materals automatically enter the collecting bag under the action of rotaing centrifugal force, and dust is collected by the dust collection box through bag filtration. This machine is designed according to the "GMP" standard and is made of stainless steel materials. There is no dust flying in the production process. Moreover, it can improve the utilization rate of materials and reduce the enterprise cost, which has reached the international advvanced level.
Product Show
