CPD Series Continous Plate Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CPD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | CPD Series Continous Plate Dryer | Model Type: | Hot Air Dryer |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Condition: | New |
| Place Of Origin: | Jiangsu, China | Power: | Depand On The Model |
| Certification: | ISO9001 | Key Selling Points: | Long Service Life |
| Warranty: | 1 Year | Material: | Stainless Steel |
| Drying Type: | Continous Drying | Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity |
| Drying Area: | 3.3-180m2 | Model: | CPD 1200-3000 |
| Outer Diameter: | 1865-3768 | ||
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
CPD Series Continous Plate Dryer
1, Continuous plate dryer / disc dryer / CPD plate drying machine
2, Widely application in various industires.
3, Low energy consumption
4, Easy operation and control
Product Descriptions
CPD series continuous plate dryer is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency, low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. Plate dryer is widely used in drying process in the fields of chemical, pharmaceuticals, agricultural chemicals, foodstuff, fodder, process of agricultural and by-products etc., and is well received by various industries. Now there are three big categories, normal pressure, closed and vacuum styles and four specifications of 1200, 1500, 2200 and 2500; and three kinds of constructions A (carbon steel), B(stainless steel for contact parts) and C (on the basis of B to add stainless steel for steam pipes, main shaft and support, and stainless steel linings for cylinder body and top cover). With a drying area of 4 to 180 square meters, now we have hundreds of models of series products and various kinds of auxiliary devices available to meet requirements of various products.
Product Working Principle
The wet material is fed continuously to the first drying layer on the top of the dryer. It will be turned and stirred by rakes when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. The material will be moved from the small drying plate to its outer edge and drop down to the outer edge of the large drying plate underneath. Both small and large drying plates are arranged alternately so the materials can go through the dryer continuously. The heat medium can be saturated steam, hot water or thermal oil. The heat will be led into hollow drying plates from one end and come out from the other end. The dried materials will drop from the last layer of the drying plate to the bottom of the dryer and then moved by rakes to the discharge outlet. The material moisture will be removed from the exhaust outlet on the top cover. For the vacuum-type plate dryer, the moisture will be sucked out by the vacuum pump on the top cover. The dried materials will be discharged from the bottom layer. The drying capability can be improved if the dryer equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism, draft fan, and etc.
Product Feature
1. Easy control, wide application
(1) Regulate thickness of materials, rotating speed of main shaft, number of harrow’s arm, style of and sizes harrows achieve best drying process.
(2) Each layer of drying plate can be fed with hot or cold media individually to heat or cold materials and make temperature control accurate and easy.
(3) Dwell time of materials can be accurately adjusted.
(4) Single flowing direction of materials without return flowing and mixing, uniform drying and stable quality, no re-mix is required.
2. Easy and simple operation
(1) Start stop of dryer is quite simple
(2) After material feeding is stopped, they can be easily discharged out of the dryer by harrows.
(3) Careful cleaning and observation can be carried inside the equipment through large-scale viewing window.
3. Low energy consumption
(1) Thin layer of materials, low speed of main shaft, small power and energy required for conveying system of materials.
(2) Dry by conducting heat so it has high heating efficiency and low energy consumption.
4. Good operation environment, solvent can be recovered and powder discharge meet the requirements of exhaust.
(1) Normal pressure type: as low speed of air flow inside the equipment and moisture being high in upper part and low in lower part, dust powder couldn’t float to the equipment, so there is almost no dust powder in tail gas discharged from the moist discharge port on the top.
(2) Closed type: equipped with solvent recovery device that can recover organic solvent easily from moist-carrier gas. The solvent recovery device has simple structure and high recovery rate, and nitrogen can be used as moist-carrier gas in closed circulation for those subject to burning, explosion and oxidation, and poisonous materials in order for safe operation. Especially suitable for drying of flammable, explosive and poisonous materials.
5. Easy installation and small occupying area.
(1) As the dryer is in a whole for delivery, it is quite easy to install and fix at site only by hoisting.
(2) As drying plates being arranged by layers and installed vertically, it takes a small occupying area though drying area is large.
Product Features Of Technology
1.Drying plate
(1) Desiging pressure: general is 0.4MPa, Max. can reach 1.6MPa.
(2) Work pressure: general is less than 0.4MPa, and max. can reach 1.6MPa.
(3) Heating medium:steam, hot water, oil. When the drying plates’ temperature is 100°C, hot water can be used ; when 100°C~150°C,it will be saturated water steam ≤0.4MPa or steam-gas, and when 150°C~320°C,it will be oil; when >32 C it will be heated by electric, oil or fused salt.
2.Material transmission system
(1) Main shaft revoluton: 1~10r/min, electromagnetism of transducer timing.
(2) Harrow arm: There are 2 to 8 pieces arm that be fixed on the main shaft on the every layers.
(3) Harrow's blade: Surrounding the harrow's blade, float together with the surface of the plate to keep contact. There're various of types.
(4) Roller: for the products easily agglomerate, or with the requirements of grinding, the heat transfer and drying process might be
reinforced by placing roller(s) at the appropriate place(s).
3.Shell
There're three types for option: normal pressure, sealed and vacuum
(1) Normal pressure:Cylinder or eight-sided cylinder, there are whole and dimidiate structures. The main pipes of inlet and outlet for heating media can be in the shell, also can be in the outer shell.
(2) Sealed: Cylindrical shell, could bear the interior pressure of 5kPa, the main ducts of the inlet and outlet of heating media might be inside of the shell or outside.
(3) Vacuum: Cylindrical shell, could bear the exterior pressure of 0.1MPa. The main ducts of inlet and outlet is inside of the shell.
4.Air heater
Normal for the application of big evaporation capacity to increase drying efficiency.
Product Application
Drying, heat decomposition, combustion, cooling, reaction, and sublimation:
1. Organic chemicals
2. Mineral chemicals
3. Pharmaceutical and foodstuff
4. Feed and fertilizer
Technical Parameters
| Type | Diameter(mm) | Height(mm) | Area of dry(m2) | Power(kw) |
| 1200/4 | 1865 | 2877 | 3.3 | 1.1 |
| 1200/6 | 3297 | 4.9 | ||
| 1200/8 | 3717 | 6.6 | 1.5 | |
| 1200/10 | 4137 | 8.2 | ||
| 1200/12 | 4557 | 9.9 | 2.2 | |
| 1500/6 | 2166 | 3327 | 8.0 | |
| 1500/8 | 3747 | 10.7 | ||
| 1500/10 | 4167 | 13.4 | ||
| 1500/12 | 4587 | 16.1 | 3.0 | |
| 1500/14 | 5007 | 18.8 | ||
| 1500/16 | 5427 | 21.5 | ||
| 2200/6 | 2820 | 3781 | 18.5 | |
| 2200/8 | 4201 | 24.6 | ||
| 2200/10 | 4621 | 30.8 | 4.0 | |
| 2200/12 | 5041 | 36.9 | ||
| 2200/14 | 5461 | 43.1 | 5.5 | |
| 2200/16 | 5881 | 49.3 | ||
| 2200/18 | 6301 | 55.4 | 7.5 | |
| 2200/20 | 6721 | 61.6 | ||
| 2200/22 | 7141 | 67.7 | 11 | |
| 2200/24 | 7561 | 73.9 | ||
| 2200/26 | 7981 | 80.0 | ||
| 2500/6 | 3115 | 3981 | 26.3 | 4 |
| 2500/8 | 4401 | 35 | ||
| 2500/10 | 4821 | 43.8 | 5.5 | |
| 2500/12 | 5241 | 52.5 | ||
| 2500/14 | 5661 | 61.3 | 7.5 | |
| 2500/16 | 6081 | 70.0 | ||
| 2500/18 | 6501 | 78.8 | 11 | |
| 2500/20 | 6921 | 87.5 | ||
| 2500/22 | 7341 | 96.3 | ||
| 2500/24 | 7761 | 105 | 15 | |
| 2500/26 | 8181 | 113.8 | ||
| 3000/8 | 3768 | 5143 | 48 | 11 |
| 3000/10 | 5643 | 60 | ||
| 3000/12 | 6143 | 72 | ||
| 3000/14 | 6643 | 84 | ||
| 3000/16 | 7143 | 96 | ||
| 3000/18 | 7643 | 108 | 15 | |
| 3000/20 | 8293 | 120 | ||
| 3000/22 | 8793 | 132 | 18.5 | |
| 3000/24 | 9293 | 144 | ||
| 3000/26 | 9793 | 156 | ||
| 3000/28 | 10293 | 158 |

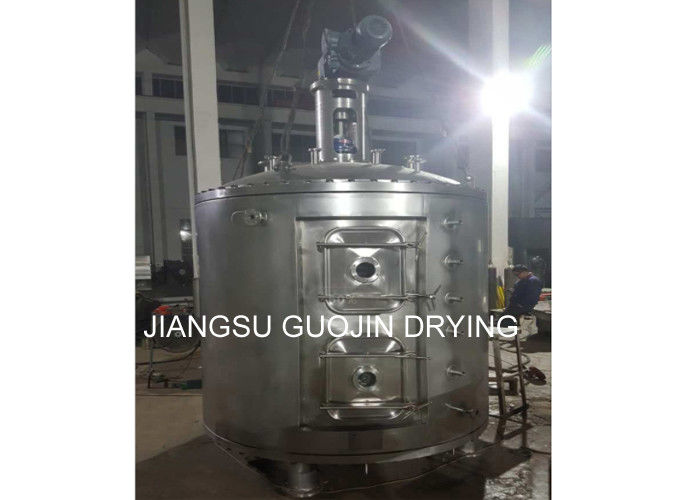

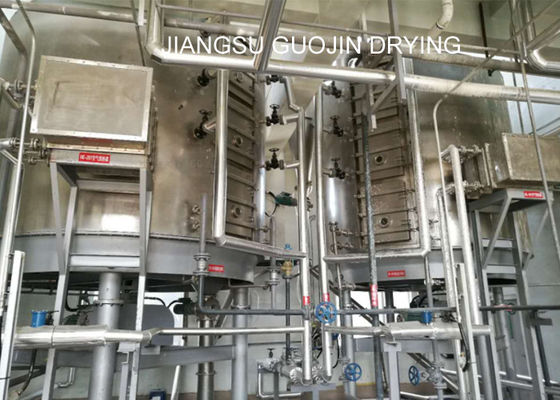

Product Show
