MPCD Series Multi-Layers Conveyor Mesh Belt Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | MPCD-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | MPCD Series Multi-Layers Conveyor Mesh Belt Dryer | Model Type: | MPCD-20 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Loading Area: | 20M2 |
| Steam Pressure: | 0.4-0.7Mpa | Steam Consumption: | 150-300kg/h |
| Drying Period: | 20-200min | Evaporation Capacity: | 100-200kg.H2O/h |
| Power: | 5.5kw | Weigth: | 8T |
| Overall Dimensions: | 8875x2408x3350 | Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
MPCD Series Multi-Layers Conveyor Mesh Belt Dryer
1, Single&Multi layer Mesh Belt Dryer / Vegetable Mesh Belt Dryer / Vegetable Dryer/ Hot Air Dryer
2, Good mobility and dissolving
3, Easy operation and control
MPCD Mesh Belt Dryer Descriptions
The dried has the characteristics of high efficiency and low energy consumption and possess the domestic advanced level in through flow drying, leading wind layer by large, drying by changing temperature stage by stage and collecting remainder heating. Main specifications have reached 90's advanced international level.
The belt converyor of this dried that loads drying material is five layers stainless steel net belt, because the hot flow below to above bell layers, heating exchane completely and evenly, production efficiency is high and the product quality are very good, there are cooling layer and vibration device in outlet to decrease the final product temperature and make it convenient to package in time.
These driers are equiped with elevator with material even device to make the height of material identical, the height of material can be adjusted by no-step.
These driers have five styles, with belt area from 25-70m2, it can meet the requirement of drying many kinds of materials and different product scale. Our factory can provide technical serves for consultation, equipment selection, reserch&design and undertaking engineering.
MPCD series band though flow dryer area widdly used in fields of food, agriculture products, dehydrated vegetable, chinese herbal midecine, aquatic products, feed and chemical industry and are suitable for drying of flaked, striped, cube and granule materials.
MPCD Mesh Belt Dryer Application
The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
MPCD Mesh Belt Dryer Work Principle
1. The dryer consists of feeder, drying bed, heat exchanger, damp exhaust fan, etc.
2. When operation, air will be entered into dryer and heated through heat exchanger. Being adopted scientific and reasonable cycle method, the hot air will pass through raw materials to be dried on the bed and carry out iniform heat exchange. Under the action of cycle fan, the hot air steam inside each unit of the dryer will carry out hot air cycle. Final air with low temperature and high damp will be out. The whole drying process with stably and high effect will be finished.
MPCD Mesh Belt Dryer Technical Parameters
| Type | MPCD-20 | MPCD-25 | MPCD-32 | MPCD-36 | MPCD-48 | MPCD-60 | MPCD-80 |
| Loading area(m2) | 20 | 25 | 32 | 36 | 48 | 60 | 80 |
| Steam pressure(Mpa) | 0.4-0.7 | ||||||
| Steam consumption(kg/h) | 150-300 | 180-375 | 240-480 | 270-540 | 360-720 | 450-900 | 600-1200 |
| Drying period(Min) | 20-200 | 60-600 | 100-1000(Stepless) | ||||
| Evaporating Capacity(kg.H2O/h) | 100-200 | 125-250 | 160-320 | 180-360 | 300-480 | 300-600 | 400-800 |
| Power(kw) | 5.5 | 5.5 | 5.5 | 5.5 | 14.2 | 15.2 | 15.2 |
| Weight(t) | 8 | 8 | 8.5 | 10 | 11 | 13 | 15 |
| Overall Dimension LxWxH(mm) | 8875*2408*3385 | 9875*2408*3385 | 11475*2408*3385 | 11475*2408*3385 | 14675*2408*3385 | 14675*2408*3385 | 15675*2408*3385 |
MPCD Mesh Belt Dryer Feature
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

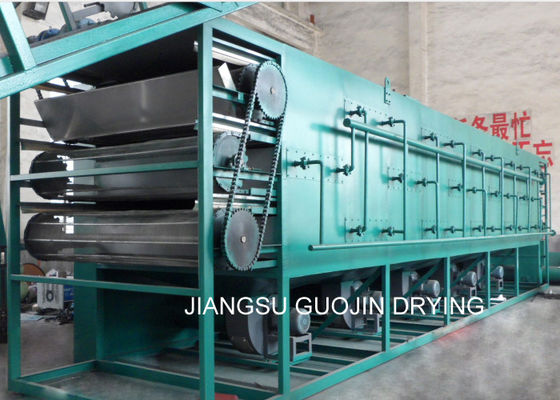

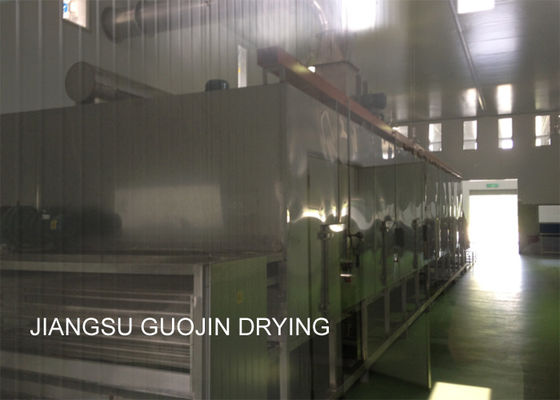

MPCD Mesh Belt Dryer Show
