PCD Series Pneumatic Conveying Dryer Suitable For Heat Sensitive Material
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | PCD50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | PCD Series Pneumatic Conveying Dryer Suitable For Heat Sensitive Material | Model Type: | PCD50 |
|---|---|---|---|
| Water Evaporation: | 50kg/h | Equipped Power: | 7KW |
| Occupied Area: | 16M2 | Height: | 9M |
| Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity | ||
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
PCD Series Pneumatic Conveying Dryer Suitable For Heat Sensitive Material
Pneumatic Conveying Dryer is also called instant drying. It is used in pharmaceutical industry, chemical industry from 1960 at home. Our factory follow up the advanced technology at abroad, produceseies air for home customer. The main products are divided into three series: QG, FG and GFF.
PCD Pneumatic Conveying Dryer Features
1. Powerful drying. Little invest and the amount of evaporated moisture is high ( from 50kgH2O/h to 2000kgH2O/h)
2. The drying time is short. The series is suitable in strong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.
3. The equipment is a total set, the heat source can be shoose from steam, coal fuel, oil fuel and gas fuel hot air furnace.
PCD Pneumatic Conveying Dryer Application
Ceramic industry: Kaolin, bentonite, clay, etc.
Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.
Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.
Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.
Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.
Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc
PCD Pneumatic Conveying Dryer Technical Parameters
|
Type |
Moisture(kg/h) |
Equipped power(kw) |
Occupied area(m2) |
Height(m) |
|
PCD50 |
50 |
7 |
16 |
9 |
|
PCD100 |
100 |
13 |
26 |
11 |
|
PCD200 |
200 |
21 |
35 |
11 |
|
PCD250 |
250 |
24 |
51 |
13 |
|
PCD500 |
500 |
43 |
78 |
13 |
|
PCD1000 |
1000 |
100 |
105 |
15 |
|
PCD1500 |
1500 |
150 |
200 |
16 |

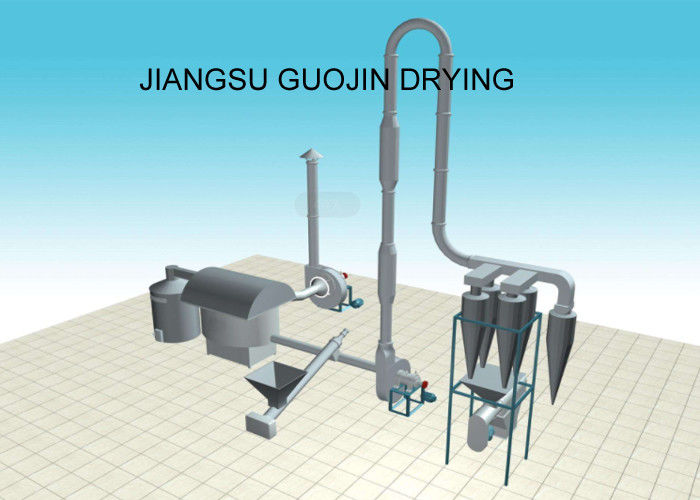

Sketch of Structure

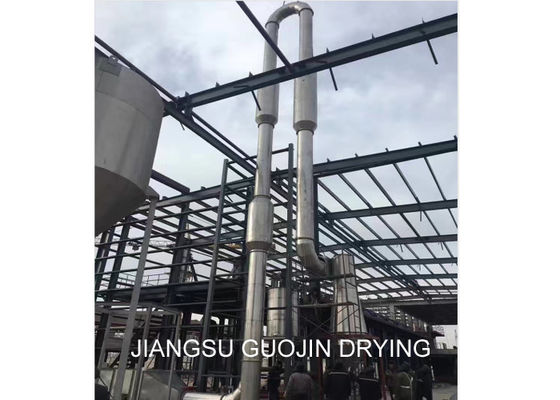

PCD Pneumatic Conveying Dryer Show
