220V Pneumatic Nozzle Spray Dryer PLC Touch Screen Controlled

Product Description

FNSD Series Pneumatic Nozzle Spray Dryer

1, FNSD model spray dryer/ pressure spray dryer /nozzle spray dryer

2, Liquid or slurry drying processor

3, Easy operation and control

4, Stainless steel

Descriptions

FNSD pressure spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops contact with hot air directly in the drying tower. Moisture content is evaporated instantly. So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C. And its automation control degree is control, environment solution environment can be solved.





Working Principle

The clean air is heated and entered into the drying tower, the raw material inside the tower is atomization and becomes mini liquid drops through nozzless of two or three liquids. The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture(solvent) in the raw materials. The moisture or solvent is discharged accompany with hot air, then got the powder product.





Features

1. It is better for raw materials that arelarge in viscosity and grease and paste. The other equipment can not replace it.

2. More varieties and wipe application in drying with lower temperature.

3. The nozzle is simple in structure, convenient in maintenance and lower cost in operation.



Application

Foodstuff industry: Amino acid and similar substance, flavoring, protein, starch, dairy products, instant coffee, fish powder, meat powder, tomato paste and so on.

Pharmaceutical Industry: Chinese patent medicine, agrochemical, antibiotics, medical drinking agent and so on.

Chemical industry: Organic catalyst, resin, synthetic washing powder, thiamin, dyestuff, intermediate of dyestuff, intermediate of dyestuff, white carbon black, graphite, ammonium phosphate and so on.

Ceramic industry: Magnesium oxide, kaolin, metallic oxide, dolomite and so on.





Technical Parameter

Model			5	25	50	100	150	200
Amount of Evaporation(kg/h)		150oC-90oC	1.5	7.5	15	30	45	60
		200oC-100oC	2.5	12.5	25	50	75	100
		250oC-100oC	3.75	18.75	37.5	75	112.5	150
		300oC-100oC	5	25	50	100	150	200
		350oC-110oC	6	30	60	120	200	240
Compressed air m3/nin			0.9	0.9	1.1	1.5	2.7	3.4
Pressure of air Mpa			0.4	0.6		0.7
Heating resource			electricity,electricity+steam, coal fuel(oil) furnace
Consumption of heating 104KCal/h			1	5	10	20	30	40
Power(KW)			0.75	4	7.5	11	15	18.5
Notes			1. If the power of equipment should be more than 200 type, it can be designed and manufactured in accordance with the requirements of customers. 2. The power of fan is suitable for standard flow chart. If add the cloth to remove dust or recover solvent, it should be increased.





Flow Diagram

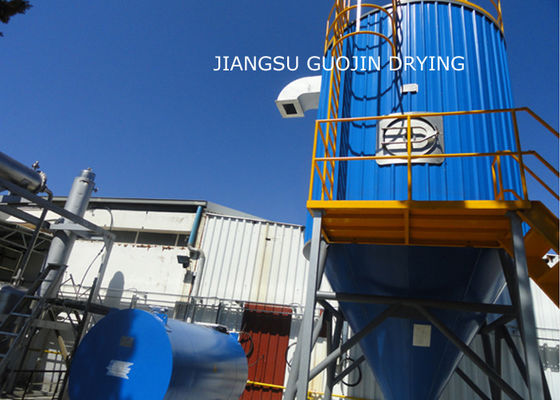

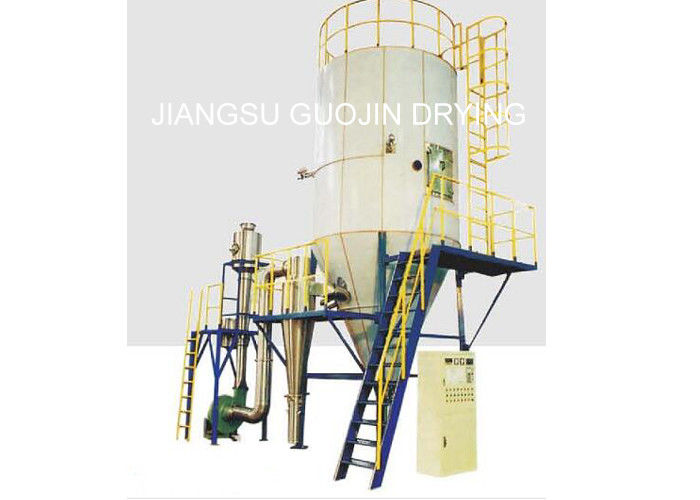

Product Show
