Internally Mounted Fluid Bed Pressure Nozzle Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | FBSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | FBSD Series Internally Mounted Fluid Bed Pressure Nozzle Spray Dryer | Model Type: | Pressure Spray Dryer |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Place Of Origin: | Jiangsu, China |
| Voltage: | 220V - 450V | Certification: | ISO9001,CE |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Material: | Stainless Steel , Carbon Steel | Rotary Speed: | 15000-25000 |
| Control: | PLC Touch Screen | Heating Source: | Electricity/LPG/Natural Gas/Oil/Steam |
| Highlight: | Fluid Bed Pressure Nozzle Spray Dryer,Internally Mounted Pressure Nozzle Spray Dryer,Internally Mounted Pressure Spray Dryer |
||
Product Description
FBSD Series Internally Mounted Fluid Bed Pressure Nozzle Spray Dryer
FBSD pressure spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops contact with hot air directly in the drying tower. Moisture content is evaporated instantly. So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C. And its automation control degree is control, environment solution environment can be solved.
Working Principle
The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the drying chamber to the bottom, the water will be evaporated to and the product becomes small granular product. Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by high pressure pump, the feeding solution becomes fine beads or small droplets through the pressure nozzle(s). When the droplets meet the high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices There’re different fine powder separation and recovery devices, such as cyclone (the common type and various combination type), bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder separation and recovery devices as per the characteristics of product and requirements of customer. Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier. The particle size of the product from pressure spray dryer is normally within the range of 120mesh to 20 mesh. If bigger particles are required, we suggest FL Fluidized Granulator or re-combined agglomerator.
Features
3. Energy saving, due to high negative pressure evaporation on top of wind return chamber of tower, it reduces the evaporation temperature and saves both heat and energy;
Application
Food: coffee, dairy products, egg products, condiments, malt dextrin, soup, plant protein, yeast and so on.
Chemical: cleaning agents, dyes, fertilizers, Inorganic salts, insecticides and so on.
Special Notice
In order to quota you the right rotary atomizer spray dryer price / rotary atomizer spray dryer / lab rotary atomizer type spray dryer price, we would like to get the following information include in your inquiry:
- -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
- -What is the capacity per hour you need (kg/h)?
- -What is the initial moisture and final moisture of finished products you require to get?
- -What about the maximum heat temperature of raw material?
- -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
- -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
- -Provide us your country’s electricity information, such as phases, voltage, HZ?
- -How about dust collect requirements?
- -Other special requirements?
Flow Diagram

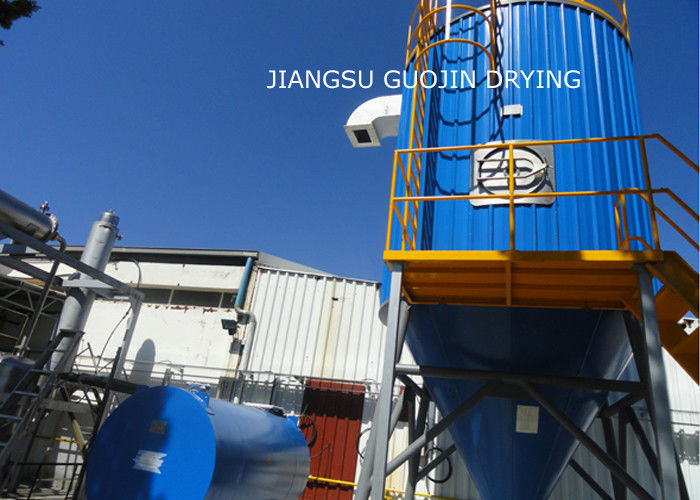

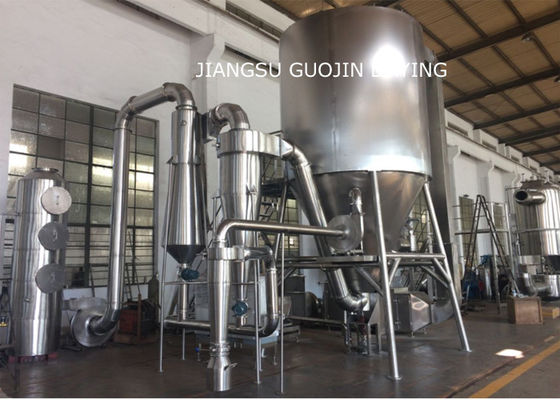

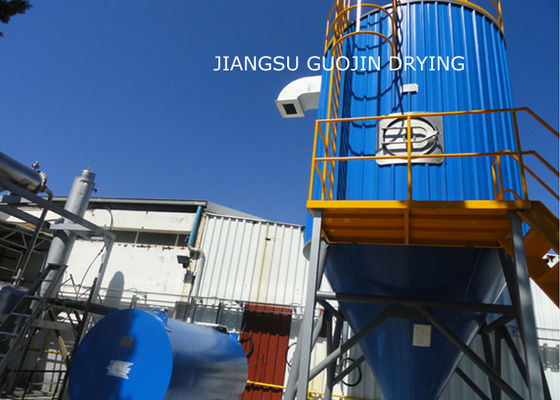

Product Show
