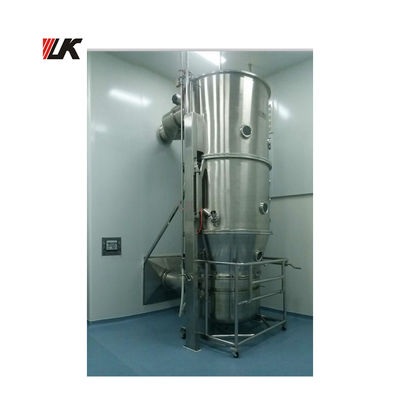

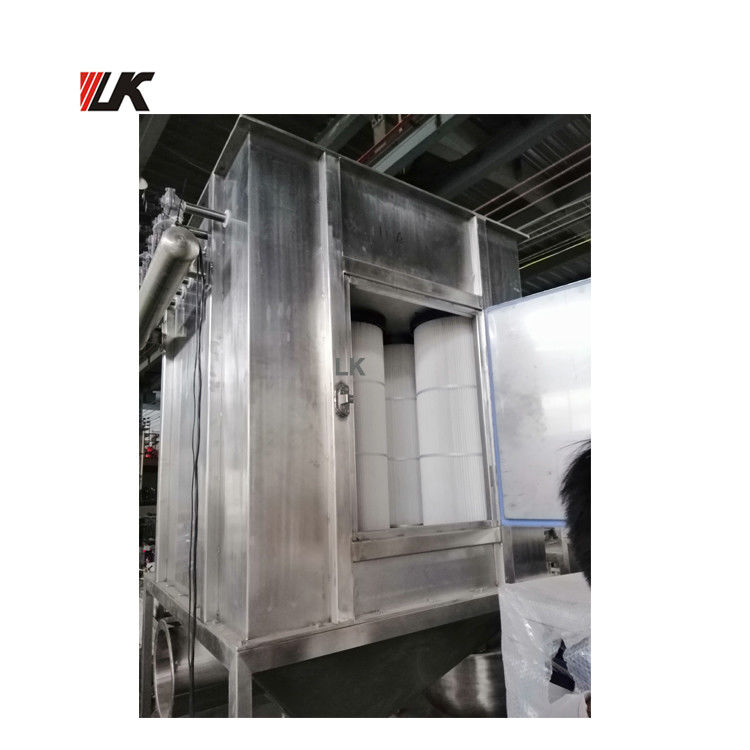

FL-200 High efficient fluid bed dryer spray granulator with Second dust removal
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | LK |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | $39,000.00 - $50,000.00 / Set |
| Packaging Details: | Fluid bed dryer spray granulator will be packed in standard exporting wooden case |
| Supply Ability: | 25 Set/Sets per Month Fluid bed dryer spray granulator |
|
Detail Information |
|||
| Type: | Fluid Bed Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Voltage: | 380V/50HZ Or Customized |
| Power(W): | 22 | Key Selling Points: | Automatic |
| Warranty: | 1 YEAR | After-sales Service Provided: | Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Pharmaceutical | Keywords: | Fluid Bed Dryer Spray Granulator |
| Material Tank Volume: | 670 L | Material Tank Diameter: | 1400MM |
| Production Capacity: | 200kg/batch | Compressed Air Pressure: | 0.4-0.6 |
| Compressed Air Consumption: | 1.1 | Steam Consumption: | 180 Kg.h |
| Blower: | 22 KW | Heater: | 87 KW |
| Application Range: | Producing And Drying The Instant Granules, Tablets And Capsules | Port: | Shanghai, Ningbo Etc. |
Product Description
FL-200 High efficient fluid bed dryer spray granulator with Second dust removal
Application
This machine is suitable for drying operation in pharmaceutical, chemical and food industries.
Working Principle
Under the suction of induced draught fan, the heated and purified air will form into high-speed hot air flow to turn the materials in material chamber into fluid state under the function of stirring and negative pressure. The water will be evaporated quickly and discharged to dry the material.
Characteristics
1.Round structure inner fluid bed to avoid dead angle
2.The hopper can be set with stirring function to avoid wet material caking, especially for powder material, which is easy to clump together because of electrostatic adsorption.
3.It adopts manual rotation to discharge the finished products, convenient, fast and complete; it also can be designed with automatic inlet and outlet system as required.
4.This machine can be connected with high-efficiency wet mixing granulator and swing straightening granulator to suck the wet materials (powder and granules) into chamber for drying under the function of negative pressure, avoiding multiply transfers of materials.
Technical Parameter
Model Item | FG-15 | FG-30 | FG-60 | FG-120 | FG-200 | FG-300 | FG-500 |
Material container volume (L) | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
Material container diameter (mm) | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
Production capacity (KG/batch) | 15 | 30 | 60 | 120 | 200 | 300 | 500 |
Steam pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Steam consumption (Kg/h) | 20 | 60 | 120 | 140 | 180 | 310 | 400 |
Compressed air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Compressed air consumption (m3/min) | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 |
Fan power (KW) | 3 | 5.5 | 11 | 18.5 | 22 | 30 | 45 |
Electric heater power (KW) | 12 | 21 | 30 | 48 | 87 | 163 | 185 |
Noise (dB) | With isolating treatment, the noise of draught fan is less than 75 dB. | ||||||
Wenzhou Liangke Machinery has specialized in production of solid preparation process machine for more than 20 years, including wet granulator, roll compactor, fluid bed dryer, mixer, tablet press, coating machine, capsule filling machine etc. Also engaged in pharmaceutical trade,chemical trade as well as food trade with qualified team and mature technology.
