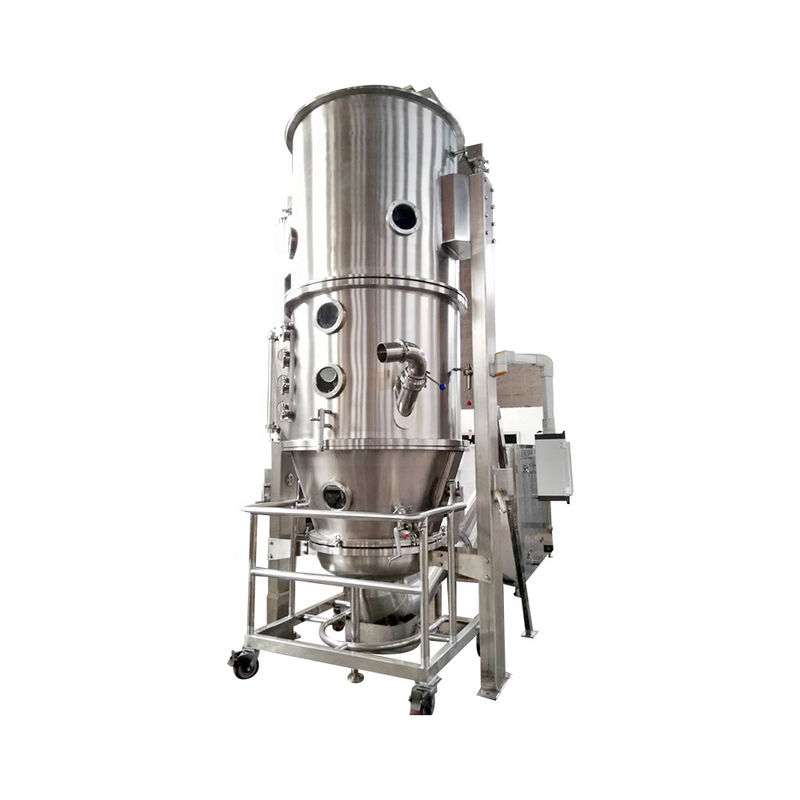

Dairy Products Fluid Bed 1500L Spray Dryer Granulator
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Drying Machine | Condition: | New |
|---|---|---|---|
| Application: | Granules, Pharmaceutical Industry | Weight (KG): | 4200 KG |
| Warranty: | 1 YEAR | After-sales Service Provided: | Video Technical Support, Online Support |
| Key Selling Points: | High Productivity | After Warranty Service: | Video Technical Support, Online Support |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, Pharmaceutical Factory | Local Service Location: | None |
| Showroom Location: | None | Product Name: | Bed Granulator |
| Capacity: | Hot Selling | Keywords: | High Efficiency Fluidized |
| Usage: | Making Granules | Fan Power: | 37kw |
| Dimension: | 2290*5180*4420 | Volume976L: | 1500L |
| Variety: | Yes | ||
| Highlight: | 1500L Spray Dryer Granulator,Fluid Bed Spray Dryer Granulator,4200KG Spray Dryer Granulator |
||
Product Description
Dairy Products Fluid Bed 1500L Spray Dryer Granulator
Features
* The main machine adopts the most advanced design conceptof Company. lt improves material fluidity through powder granulating(mixing, granulating and drying).
* The operation is carried out in a closed negative system.
* The equipment is provided with the closed sampling function.The air intake control valve adopts proportional adjustment.The air intake heating system can adopt two heating modessuch as electric heating or steam heating.
* The machine is equipped with the advanced WIP cleaning.
* The machine meets the requirements for production in FDA/cGMP.
* The machine can be provided with 10Bar explosion-proofdesign according to user requirements.
* The operation is carried out in a closed negative system.
* The equipment is provided with the closed sampling function.The air intake control valve adopts proportional adjustment.The air intake heating system can adopt two heating modessuch as electric heating or steam heating.
* The machine is equipped with the advanced WIP cleaning.
* The machine meets the requirements for production in FDA/cGMP.
* The machine can be provided with 10Bar explosion-proofdesign according to user requirements.
Products Description
| Model | FL-10 | FL-20 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 | ||
| Raw material vessel volume(L) | 35 | 73 | 112 | 220 | 566 | 739 | 976 | 1500 | ||
| Production capacity(kg/h) | 15 | 20 | 30 | 60 | 120 | 200 | 300 | 500 | ||
| Steam | Pressure(MPa) | 0.4-0.6 | ||||||||
| 80Consumption(kg/h) | 80 | 116 | 116 | 240 | 380 | 420 | 520 | 800 | ||
| Compressed air | Pressure(MPa) | 0.4-0.7 | ||||||||
| Consumption(m³/min) | 0.6 | 0.9 | 1.5 | |||||||
| Fan power(kw) | 5.5 | 7.5 | 7.5 | 15 | 18.5 | 30 | 37 | 55 | ||
| Outline dimensions(mm) | w | 1200 | 1480 | 1480 | 1660 | 1890 | 2090 | 2290 | 2300 | |
| H | 3760 | 4000 | 4000 | 4420 | 4540 | 5100 | 5180 | 5600 | ||
| H1 | 3270 | 3600 | 3690 | 3690 | 4230 | 4315 | 4420 | 4800 | ||
Application
The machine is a process machine widely applied in such industries as drug, food, chemical industry, dairy products, etc. lt has such functions as mixing, granulating, drying, etc.
