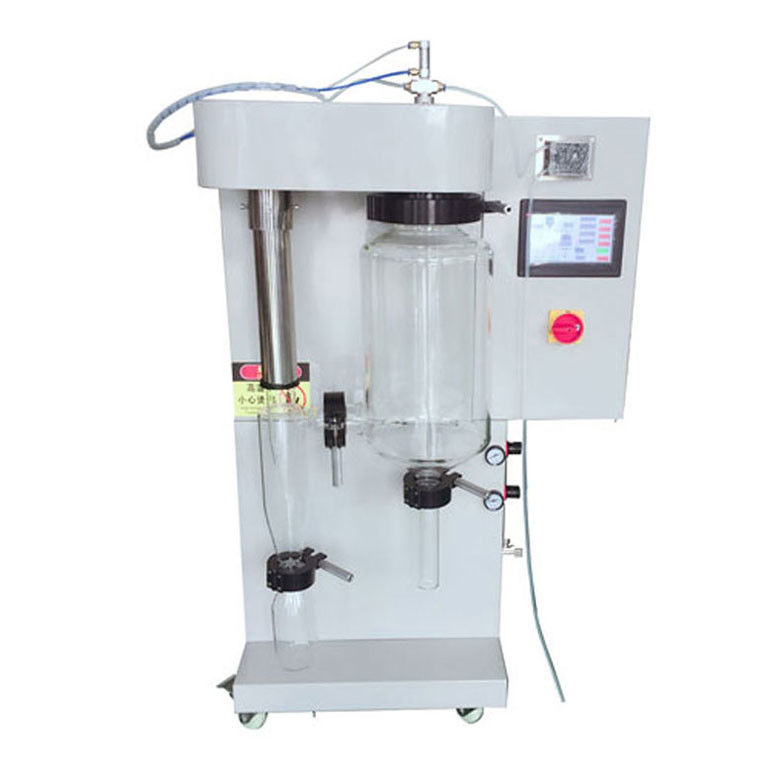

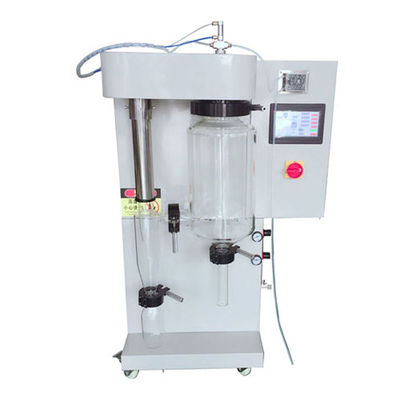

Mini Laboratory Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Liquid To Powder Machine | Condition: | New |
|---|---|---|---|
| Voltage: | 108V-240V | Power(W): | 3KW |
| Dimension(L*W*H): | 750*900*1400mm | Key Selling Points: | Easy To Operate |
| Warranty: | 1 YEAR | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts |
| After Warranty Service: | Video Technical Support | Applicable Industries: | Laboratory |
| Local Service Location: | None | Showroom Location: | None |
| Weight: | 130kg | Heating Source: | Electricity |
| Material: | Stainless Steel | Installation: | Engineer's Guidance |
| Usage: | Milk Powder, Orange Juice, Instant Coffee Powder, Etc | Capacity: | Lab Type, Pilot Type, Industry Type Available |
| Spray Dryer OEM: | Please Contact | Spray Drying Machine Factory Visit: | Please Contact |
| Color: | White | Type: | Spray Drying Equipment |
| Highlight: | Mini Laboratory Spray Dryer,2L/H Laboratory Spray Dryer,750*900*1400mm Laboratory Spray Dryer |
||
Product Description
Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
| Max capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 30C -280C |
| Temperature range of outlet air | 40C -120C |
| Precision of temperature | ± 1 C |
| Dryer time | 1.0-1.5 S |
| Speed of squirmy pump | 30-2000ml/h, |
| Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
| Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
| Spray system | 2 liquid nozzles with standard 1.0mm jet |
| options of 0.5/0.7/1.5/2.0/2.5mm | |
| Spray direction | downwards co-current |
| Power | 3.5KW 108V-240V |
| Dimensions | 650*500*1550 ( mm ) L * W* H |
| No | Name | Qty |
| 1 | Drying Chamber | 1 |
| 2 | Cyclone | 1 |
| 3 | Fan | 1 |
| 4 | Peristaltic pump | 1 |
| 5 | Air compressor | 1 |
| 6 | Collection bottle 500ml | 1 |
| 7 | Sample collection tube | 1 |
| 8 | Silicone tube 6mm | 1.5m |
| 9 | Nozzle | 1 |
| 10 | Black Clamp | 1 |
| 11 | Nozzle cleaner | 1 |
| 12 | Power wire | 1 |
1. High-tech nozzle,high efficiency.
2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.
3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.
4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.
5. Material won’t get polluted due to the special material of the atomizing.
drying and collection system.
6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.
7. PID constant temperature control,precise temperature control,precision is ±1℃.
8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.
9. Uniform product powder,above 95% powder keep within same size range.
1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.
7. Others: fishmeal waste, feed, etc.
