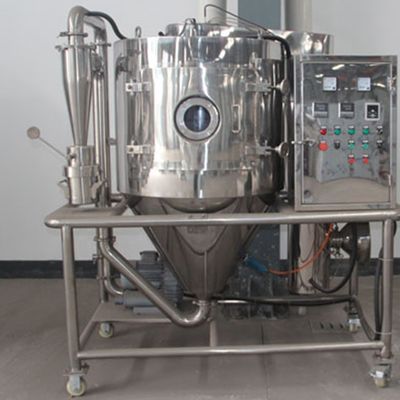

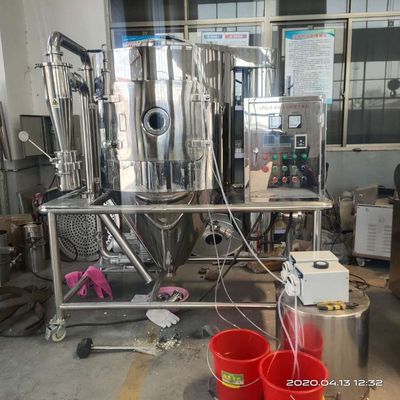

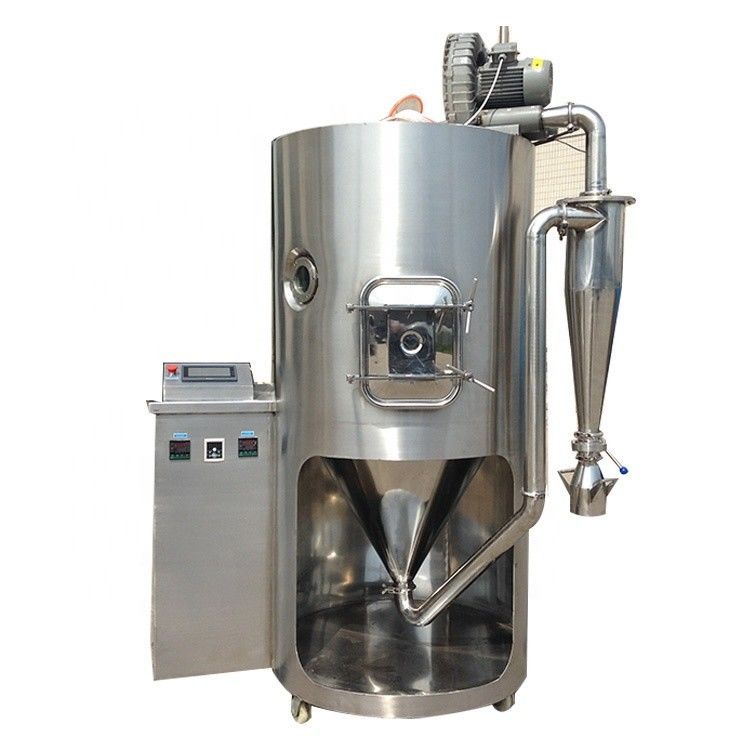

Centrifugal Industrial Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Application: | Chemicals Processing, Food Processing, Medicine Processing | Condition: | New |
|---|---|---|---|
| Voltage: | 3phase,380V,50HZ | Power(W): | 9 Kw |
| Dimension(L*W*H): | 1.6*0.91*1.75 M | Key Selling Points: | Competitive Price |
| Warranty: | 1 YEAR | After-sales Service Provided: | Video Technical Support |
| Weight (KG): | 1.3T | After Warranty Service: | Online Support, Video Technical Support |
| Applicable Industries: | Food & Beverage Factory | Local Service Location: | None |
| Showroom Location: | None | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 YEAR | Core Components: | Bearing, Gear, Pressure Vessel, Spray Tower |
| Power Of Induced Draft Fan: | 1.1 KW | Working Temperature: | Inlet Temperature180℃ Outlet Temperature 80-90℃ |
| Maximum Evaporation: | 5kg/h | Heating Source: | Elecric,stream+elecric And Oil Fuel ,gas Fuel ,hot Air Furnace |
| Diameter Of Tower: | 0.9 M | Revolution Of Atomizer: | 25000 R |
| Type: | Centrifugal Spray Dryer | Machinery Test Report: | Qualified |
| Highlight: | Centrifugal Industrial Spray Dryer,High Speed Industrial Spray Dryer,5kg/h Industrial Spray Dryer |
||
Product Description
Product details
| Power of induced draft fan | 1.1 KW |
| Electrical heating | 15KW |
| Installed power | 20KW |
| Working temperature | Inlet temperature180℃ outlet temperature 80-90℃ |
| Maximum evaporation | 5kg/h |
| Heating source | elecric,stream+elecric and oil fuel ,gas fuel ,hot air furnace |
| Diameter of tower | 0.9 m |
| Revolution of atomizer | 25000 r |
Description
LPG series high-speed centrifugal spray dryer is a special equipment and suitable for drying emulsion, suspending liquid, liquor and so on.particularly it is good for drying polymers and resins; dyestuff and pigment;ceramics, glass;derust agent; pesticide; carbohydrate,dariryproducts; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.
Principle
Air pass through air filter and heater, enters into hot air distributor at the top of dry chamber. then enters into dry chamber vuiformly with helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber by pump through filter, liquid of raw material atomizers small drops Air and liquid of raw material flow and contact fully, The moisture vaporize rqpidly, and raw material is dried into powderstate in a short time. The finished product is discharged through cyclone separator from the bottom of dryer tower, The exhausted air is dischanged through fan.
Features
1. Its dry speed is very quick. Usually, it needs 5- 15 seconds.It has feature of momentary dry.
2. Because raw material can be dried momentarily. Especially, it is suiable for drying heat sensitive raw materials. It can maintain color, flavor and smell of raw materials.
3. Its operation is stable and simple.Its regulation and control is very convenient It is easy to realize continuous production.
4. The distribution, fluidity and solubility of product are good.
